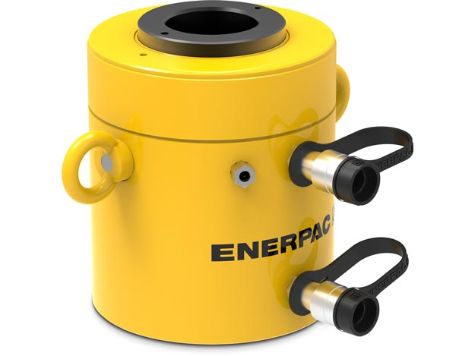

Enerpac RRH1003 Hydraulic Cylinder

Enerpac RRH Series double-acting hydraulic cylinders with a central bore, designed for controlled piston extension and retraction. Their unique hollow-piston design allows for both pulling and pushing forces, making them ideal for applications such as tensioning, testing, pulling, and lifting.

Key features of the RRH series:

• Double-acting with two connection ports, ensuring controlled hydraulic flow for both piston extension and retraction, allowing for more precise motion control compared to single-acting cylinders.
• Safety valves that prevent cylinder damage in the event of excessive pressure, enhancing operational safety.
• Baked enamel finish, increasing corrosion resistance and extending the cylinder’s service life.
• Threaded holes in the base and flange thread, enabling easy and versatile mounting, allowing for the use of both pulling and pushing forces.
• Nickel-plated, floating center tube, extending the product’s service life and ensuring smooth operation.
• Hollow piston, enabling the use of both pulling and pushing forces, increasing application versatility.
• CR-400 fittings and dust caps included with all models, facilitating connection to the hydraulic system and protecting against contamination.
• Piston wiper, reducing contamination and extending the cylinder’s service life.
