Description

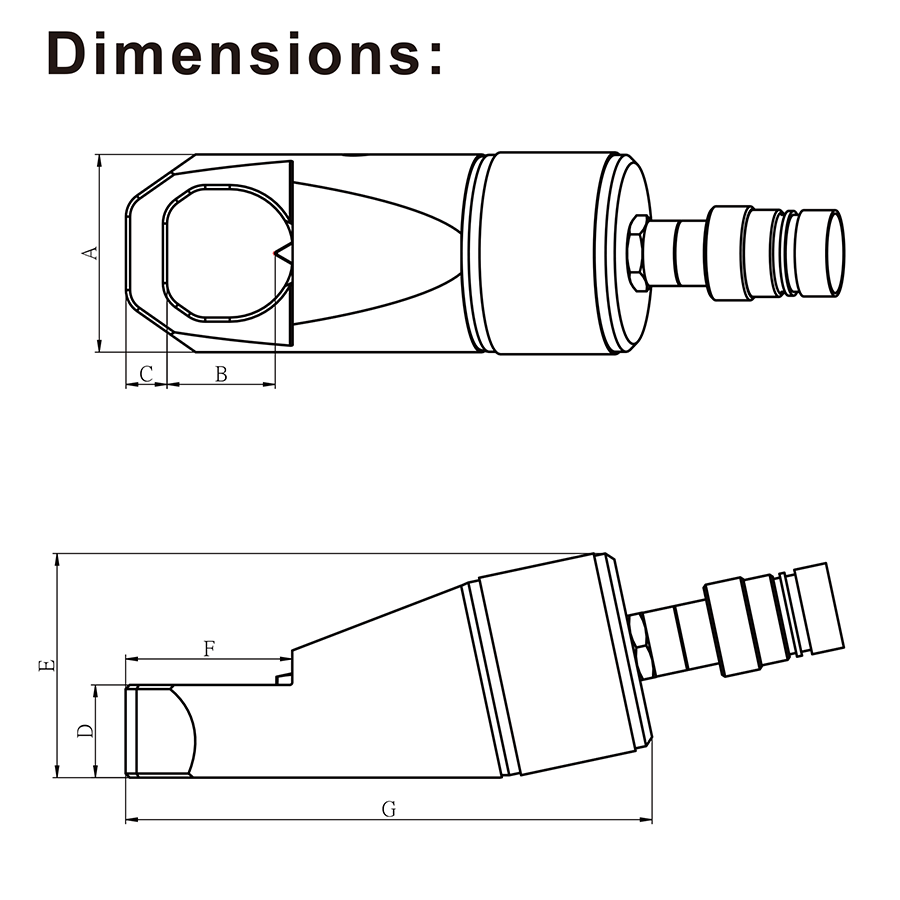

| Model No. | Screw range | Hex nut range (mm) | Lifting capacity (tons) | Oil capacity (cm³) | Dimensions (mm) Length|Width|Height | Net weight (kg) | Gross weight (kg) |
|---|---|---|---|---|---|---|---|
| HYNC-1319 | M6-M12 | 10-19 | 6.23 | 15 | 170 | 40 | 48 | 1.2 | 2.6 |
| HYNC-1924 | M12-M16 | 19-24 | 11.24 | 20 | 191 | 54 | 62 | 2.0 | 3.6 |
| HYNC-2432 | M16-M22 | 24-32 | 18.39 | 60 | 222 | 64 | 72 | 3.0 | 5.2 |
| HYNC-3241 | M22-M27 | 32-41 | 25.69 | 80 | 244 | 75 | 88 | 4.4 | 7.0 |
| HYNC-4150 | M27-M33 | 41-50 | 38.92 | 155 | 288 | 94 | 105 | 8.2 | 13.6 |
| HYNC-5060 | M33-M39 | 50-60 | 54.88 | 240 | 318 | 106 | 128 | 11.8 | 18.4 |
| HYNC-6075 | M39-M48 | 60-75 | 102.76 | 492 | 393 | 156 | 181 | 34.1 | 42.7 |
