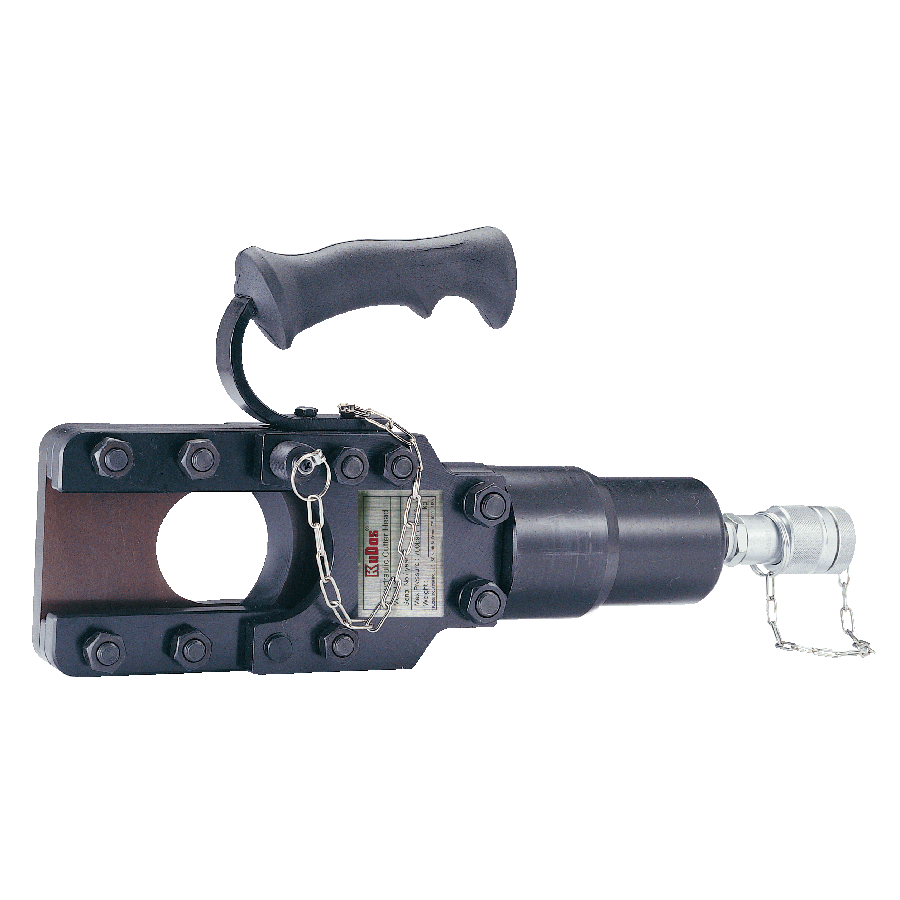

Description
| Specifications: | |
|---|---|
| Maximum pressure: | 700 bar |
| Required oil volume: | 107 cm³ |
| Maximum capacity: | 16.44 tons / 146.3 kN |
| Length: | 415 mm |
| Weight: | 8.4 kg |
| Cutting capacity: | |
| 6x7 steel cable: | 25 mm |
| 6x12 steel cable: | 30 mm |
| 6x19 steel cable: | 30 mm |
| Soft steel rod: | 22 mm |
| Reinforcing bar: | 19 mm |
| Copper strands: | 50 mm |
| Al mesh: | 50 mm |
| ACSR: | 50 mm |
| 1x7 guy wire: | 15 mm |
| 1x19 guy wire: | 20 mm |
| Soft copper rod: | 24 mm |
| Soft aluminum rod: | 18 mm |
| Underground cable: | 24 mm |
