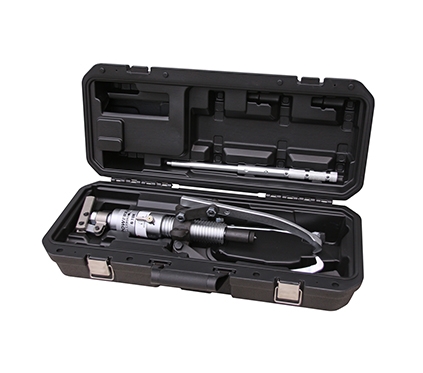

MCH-6 Integrated Hydraulic Puller

Made-to-order product

ASK ABOUT THE PRODUCT

MCH-6

  • A two- or three-arm puller with interchangeable arms is a practical and economical solution.
  • The pump body rotates 360°.
  • Independent hydraulic pump and puller body with a built-in safety valve.
  • Spring-loaded centering nut ensures easy operation (removable).
  • The four-stage folding and removable handle reduces handle resistance during operation.
  • Extension bars can be used as needed to increase reach.

Additional information

Description

Type

Max. pulling force

Max. reach

mm

Max. spacing

mm

Piston stroke

mm

Weight

kg

MCH-4

4 t

185

275

60

4.5

MCH-6

6 t

230

300

85

6.5

MCH-8

8 t

230

350

85

6.5

MCH-12

12 t

270

375

85

8

MCH-20

20 t

360

520

111

22

MCH-30

30 t

360

550

111

32
